• Metal reinforced interlocking panels give structural support and will also increase strength and security. This feature will insure a precise closing and locking process.

• Nail-on fin is designed to accept 7/8” stucco against the window’s perimeter.

• Fusion welded corners on both frame and panel profiles eliminate the possibility of leaks and minimize air and water infiltration. Welding insures that corners will be permanently square and structurally strong.

• All insulated glass has standard 3/4” overall thickness for increased thermal performance.

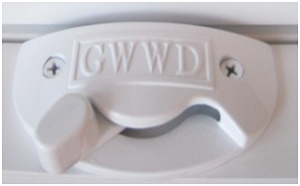

• Cam lock insures a weather tight seal and exceeds all forced entry resistance requirements.

• Available in white and almond.

• Also available in power wall frame.

Frame Colors-Interior and exterior colors must be the same.

Interior Frame Color

White	Almond

Obscure-GreenWorld’s obscure glass gives privacy and style for windows and doors throughout your home, and is ideal for locations requiring more privacy such as bathrooms.

Standards -Green World Windows;meets the following standards.

Grid Types -You can choose from 5/8” flat grids to give you the most viewing area, or 1” sculptured grids, which will add a rich architectural detail to your windows. There are many patterns available, and maybe even some that you could create.

Marginal	Permeter	Queen Anne	Colonial	Colonial

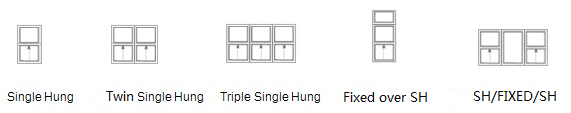

Possible Combinations

PLANNING AND BUILDING DEPARTMENT

EMERGENCY ESCAPE AND RESCUE WINDOWS

All sleeping rooms in dwelling units below the fourth floor shall have at least one operable window or door approved foremergency escape or rescue. The emergency window or door shall be operable from the inside to provide a full, clear opening without the use of separate tools. Escape or rescue windows shall have a minimum net clear openable area of 5.7 square feet. The minimum net clear height dimension shall be 24 inches. The minimum net clear width dimension shall be 20 inches. When windows are provided as a means of escape or rescue, they shall have a finished sill height not more than 44 inches above the floor.

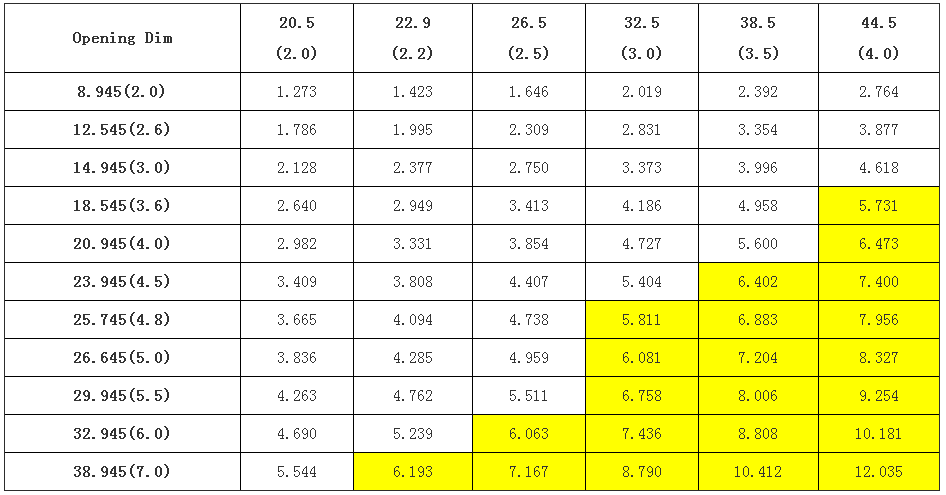

The below is Platinum S-2000/2800 Egress Table:

Cross Section:

PLATINUM-NAILON S2000 SH.pdf

PLATINUM-POWER S2000 SH.pdf

PLATINUM-retrofit S2800 SH.pdf

PLANNING AND BUILDING DEPARTMENT

EMERGENCY ESCAPE AND RESCUE WINDOWS

All sleeping rooms in dwelling units below the fourth floor shall have at least one operable window or door approved foremergency escape or rescue. The emergency window or door shall be operable from the inside to provide a full, clear opening without the use of separate tools. Escape or rescue windows shall have a minimum net clear openable area of 5.7 square feet. The minimum net clear height dimension shall be 24 inches. The minimum net clear width dimension shall be 20 inches. When windows are provided as a means of escape or rescue, they shall have a finished sill height not more than 44 inches above the floor.

The below is Platinum S-2000/2800 Egress Table:

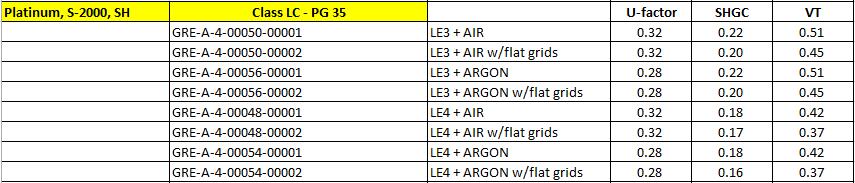

NFRC:

S-2000-NFRC/S-2800-NFRC.pdf

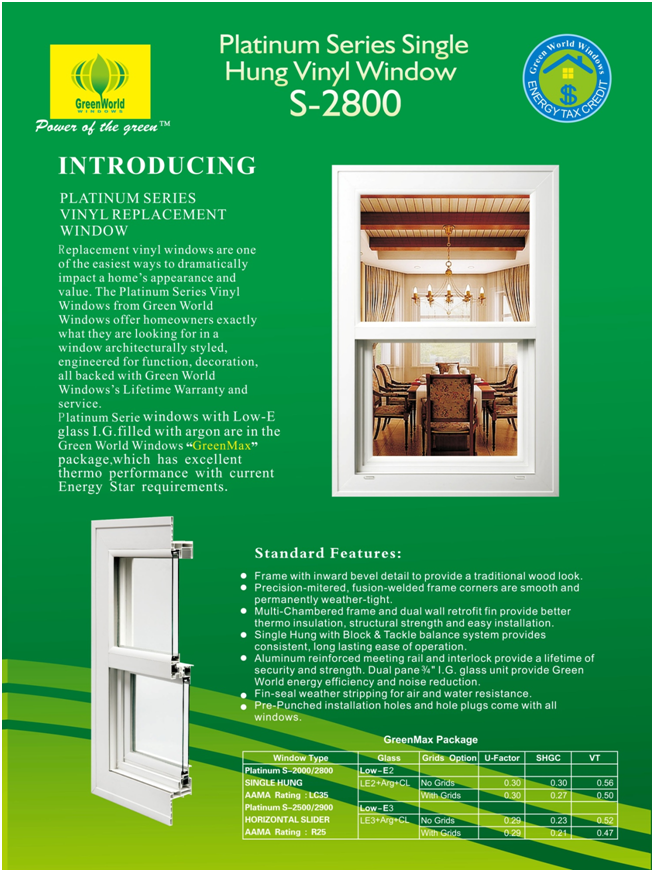

Brochures:

S-2800.pdf
